DOORS AND LOCKS FOR SAFETY FENCES

SINGLE HINGED DOORS

  • Heights from 1400 to 4700 mm. All measures available in steps of 100 mm.



  • Width from 450 to 1550 mm, in steps of 10 mm.



  • Available in all RAL colours without extra set-up cost.



  • Also available without top beam.



  • Easy to install as they are made-to-measure and pre-assembled.
  • PICTURE
  • SCHEMATICS
  • 3D

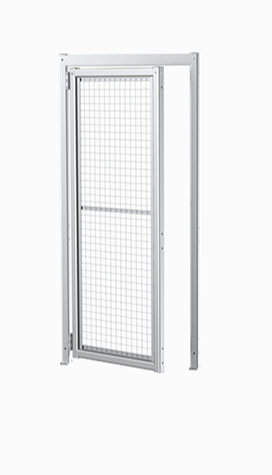

enkel slagportweb-1 garrantel

SCHEMATICS

enkelslagportschematicweb garrantel

3D

DOUBLE HINGED DOORS

  • Heights from 1400 to 4700 mm. All measures available in steps of 100mm.



  • Width from 900 to 3000 mm, in steps of 10 mm.



  • Available in all RAL colours without extra set-up cost.



  • Easy to install as they are made-to-measure and pre-assembled.



  • Support wheel in the middle available upon request.
  • PICTURE
  • SCHEMATICS
  • 3D

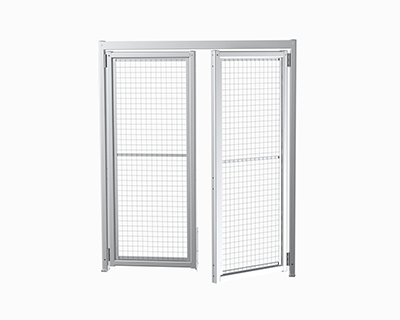

dubbelslagportpngtiny garrantel

SCHEMATICS

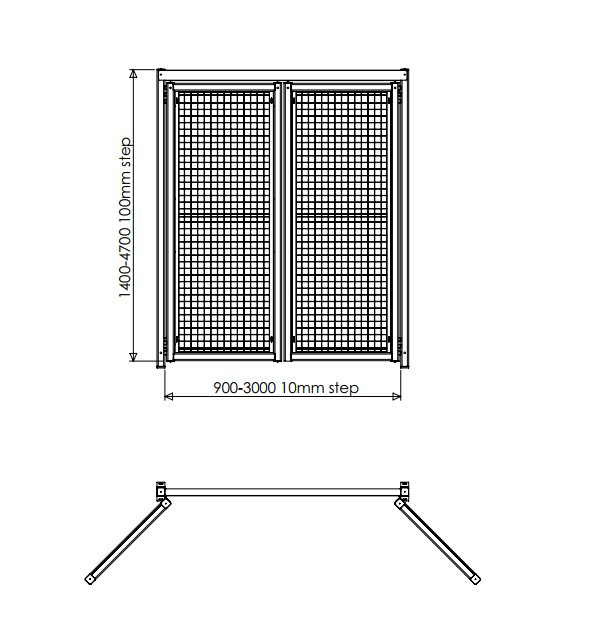

Doubledoortiny garrantel

3D

Locks for hinged doors

Euro cylinder lock
Cylinder lock with panic bar
Cylinder lock with panic handle
Pad lock plates

OTHER LOCK OPTIONS FOR HINGED DOORS:

  • Electrical strike

Switch fittings for:
  • Euchner MGB
  • Schmersal AZM201
  • Schmersal AZ16
  • Other models on request





SINGLE TOP RAIL DOORS

  • Heights from 1600 to 4700 mm. All measures available in steps of 100 mm.



  • Door openings from 450 to 5000 mm, in steps of 10 mm.



  • Total door width inclusive posts between 1000 and 10100 mm.



  • Available in all RAL colours without extra set-up cost.



  • Easy to install as they are made-to-measure and pre-assembled.
  • PICTURE
  • SCHEMATICS
  • 3D


enkel topraildorrphototiny garrantel

SCHEMATICS

single top rail door garrantel

3D

DOUBLE TOP RAIL DOORS

  • Heights from 1700 to 4600mm. All measures available in steps of 100 mm.



  • Door openings from 900 to 5000 mm, in steps of 10 mm.

  • Total door width inclusive posts between 2000 and 10200 mm.

  • Available in all RAL colours without extra set-up cost.

  • Easy to install as they are made-to-measure and pre-assembled.



  • PICTURE
  • SCHEMATICS
  • 3 D


dubbeltoprail5 2 garrantel

SCHEMATICS

schematicdoublephototiny garrantel

3 D

LOCKS FOR TOP RAIL DOORS

Euro cylinder lock
Padlock plate

OTHER LOCK OPTIONS FOR TOP RAIL DOORS


Switch fittings for:
  • Euchner MGB
  • Schmersal AZM201
  • Schmersal AZ16
  • Other models on request

SINGLE FLOOR SLIDING DOORS

  • Heights from 1400 to 2300mm. All measures available in steps of 100 mm.



  • Door openings from 450 to 2500 mm, in steps of 10 mm.

  • Total space needed between 1272 and 4115 mm.

  • Easy to install as they are made-to-measure and pre-assembled.

  • Available in all RAL colours without extra set-up cost.

  • These telescopic doors are ideal when vehicles/things of great height need to pass.



  • PICTURE
  • SCHEMATICS
  • 3D


enkel floorslide med teleskop4 11photo garrantel

SCHEMATICS

schematicsinglefloorphoto garrantel

3D

DOUBLE FLOOR SLIDING DOORS

  • Heights from 1400 to 2300 mm. All measures available in steps of 100 mm.



  • Door openings from 900 to 5000 mm, in steps of 10 mm.



  • Total space needed between 2730 and 8110 mm.



  • Available in RAL colours without extra set-up cost.



  • These telescopic doors are ideal for tall passing objects, for instance high vehicles.


  • Easy to install as they are made-to-measure.
  • PICTURE
  • SCHEMATICS
  • 3D


dubbel floorslid med telekop5 12 garrantel

SCHEMATICS

schematic view double floor sliding telescopic door garrantel

3D

LOCKS FOR FLOOR SLIDING DOORS

Euro cylinder lock
Padlock plate

OTHER LOCK OPTIONS FOR FLOOR SLIDING DOORS



Switch fittings for:
  • Euchner MGB
  • Schmersal AZM201
  • Schmersal AZ16
  • Other models on request

CREATE YOUR OWN DESIGN

Use our online service Garantellator to create your own drawings. You will get a complete quote including freight.
TO GARANTELLATOR
